01

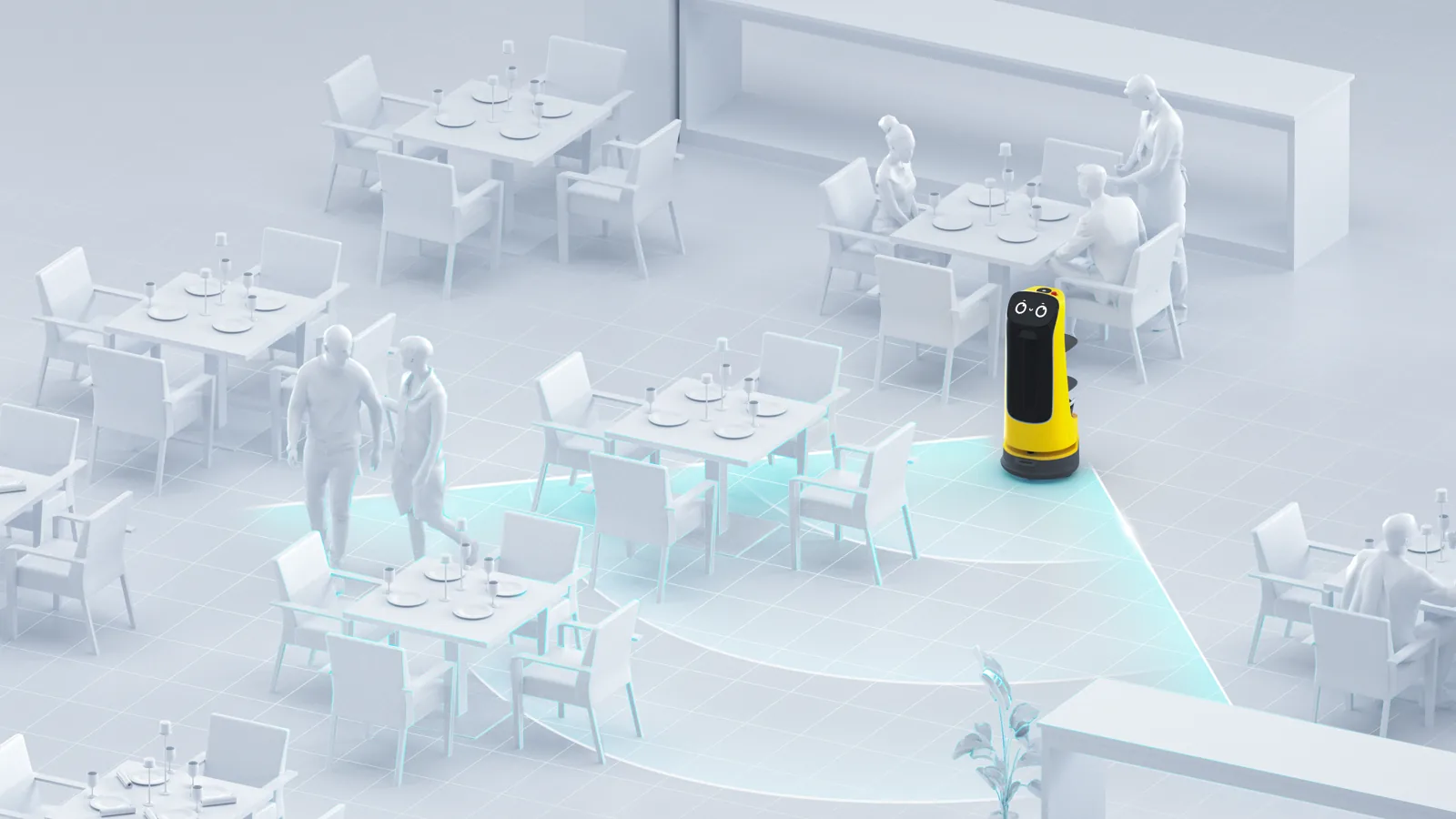

Environmental perception
Laser and visual navigation, together with RGBD cameras, support environmental sensing along the route.
← Back to PUDU robots
Product sheet · Delivery and interaction
KettyBot Pro
A delivery robot with trays, a screen, and voice interaction.
Introduction video
Product introduction video. Decision-relevant product information is provided in text on this page.
Delivery and interaction
How KettyBot Pro works
KettyBot Pro combines delivery, screen, and interaction in a narrow body, with RGBD perception and tray detection supporting each task.
Points to evaluate
- Route
- Free width, turns, furniture, and crossings with people.
- Trays
- Load type, item removal, and sequence between destinations.
- Interaction
- Screen content, voice, and expected action at each point.
- Operation
- Charging, return, and the person responsible for the machine.
02

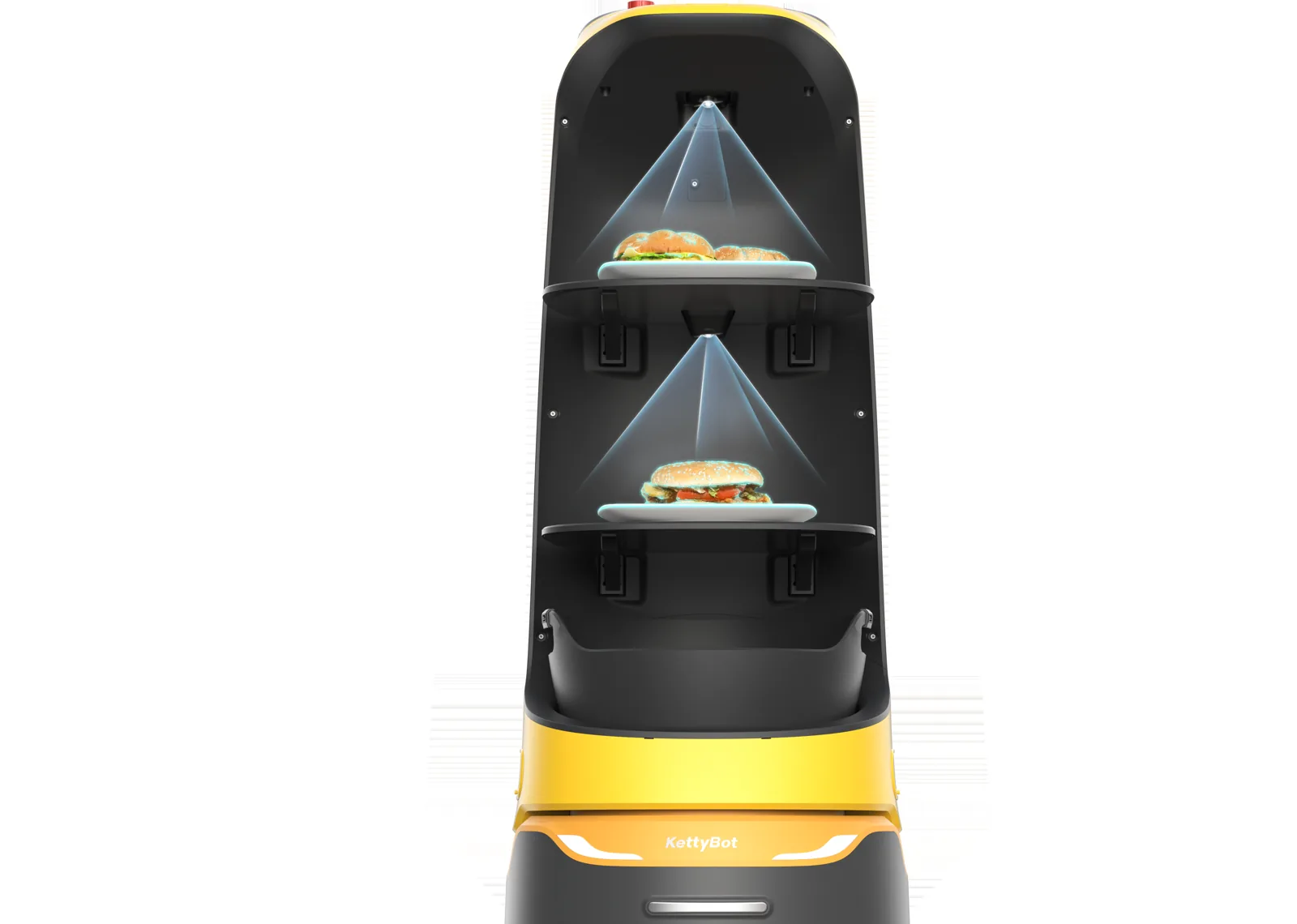

Tray observation
Cameras aimed at the trays observe load changes; the workflow should be checked with the intended containers and removal sequence.
03

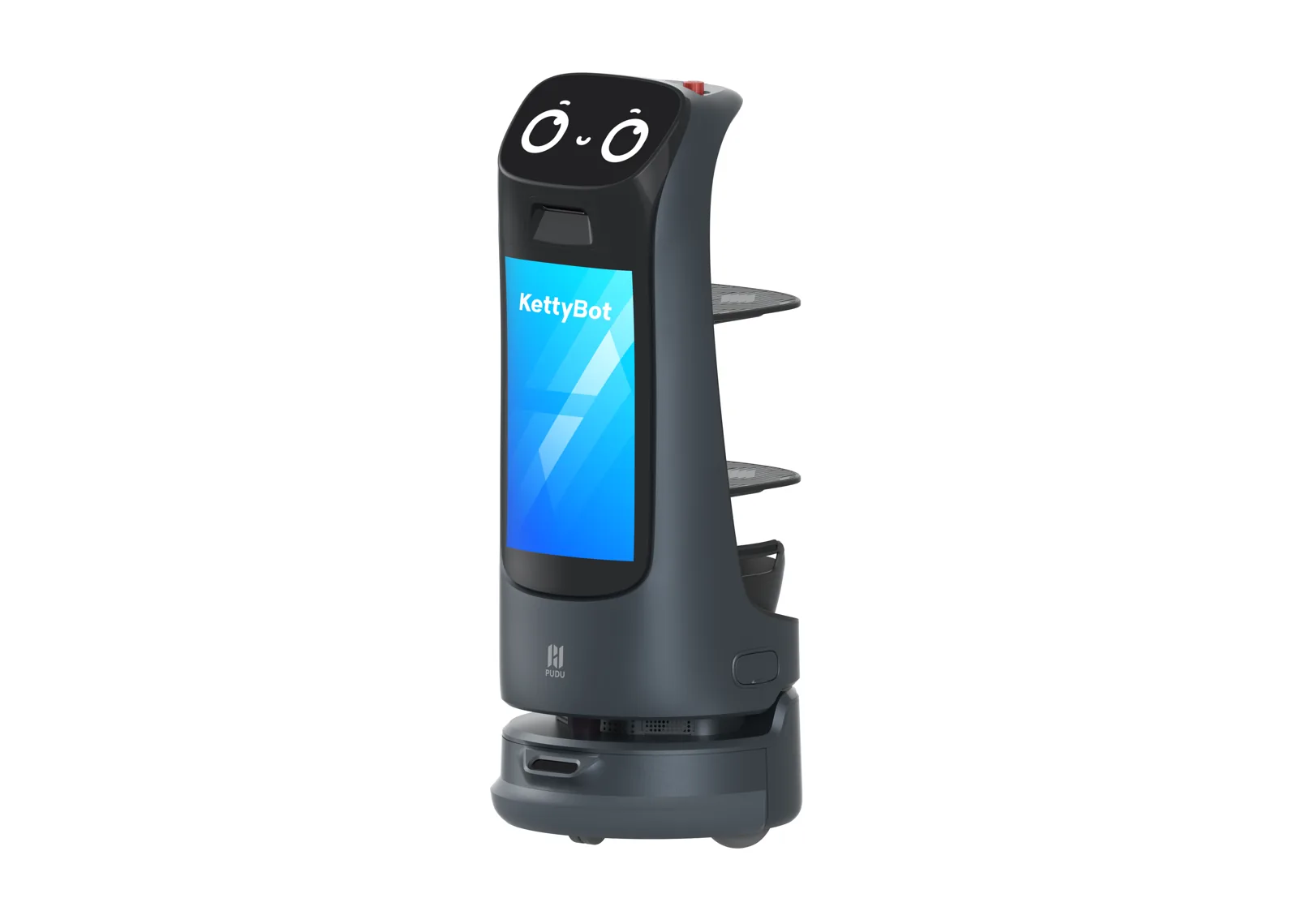

Display and service configuration
The side view brings the display and trays together; content, legibility, and layout should be defined for each route.
Technical reference
- Dimensions
- 435 × 450 × 1120 mm
- Weight
- 38 kg
- Load per tray
- 10 kg
- Battery
- 25 Ah
- Run-time
- 11 h
- Clearance
- ≥52 cm in specific situations
